ON-SITE MACHINING & WELDING
OUTAGE SUPPORT SERVICES

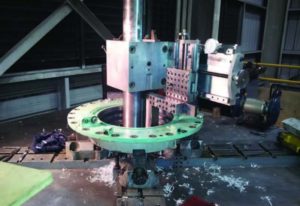

Portable Vertical Turret Lathe (VTL)
CAPACITY:
96” DIA., 48” on Z-Axis
MAX TABLE WEIGHT:
10,0000 lbs.
POWER:
15HP, 480 VAC 3PH
WEIGHT OF TABLE EMPTY:
9,500 lbs.
Portable Horizontal Lathe (70 Ton)
LATHE HEADSTOCK:
72”x 60”x 80”, 8,500 lbs
BED PLATE (QTY 2):
120”x 96”x 10”, 12,000 lbs
CROSS PLATE:
108”x 54”x 36”, 4,000 lbs
BEARING PAD SUPPORTS (QTY 2):
72”x 32”x 72”, 4,00 lbs
Ready to speak to an PSG representative about this service? Please visit our contact page to send us a message or call toll-free from the US 800-226-7557 (or 1-770-297-1888 for international customers) to begin the conversation.
